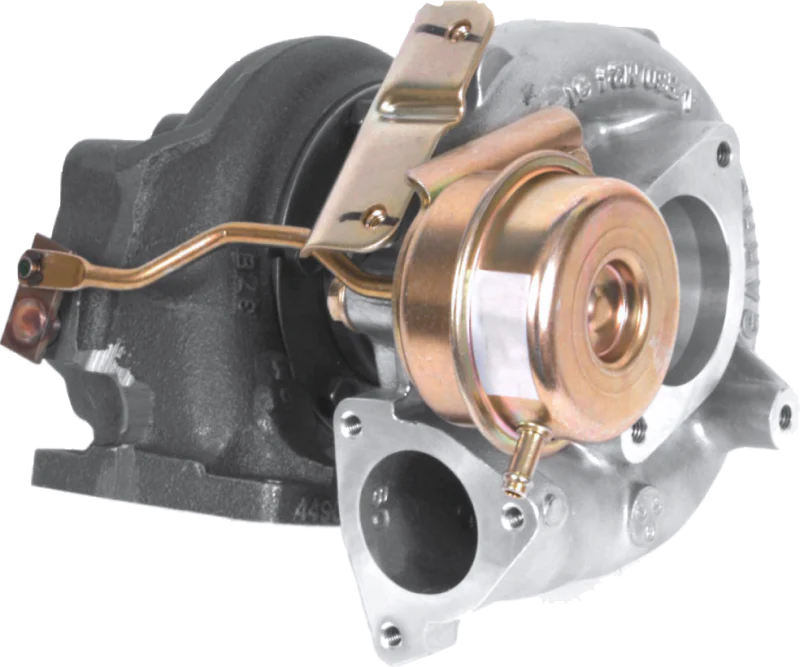

Garrett - GT2560R Turbo Standard Rotation 42MM Comp Ind 0.64 A/R T25 Turbine Inlet 5-Bolt Turbine Outlet
Horsepower: 170 - 270
Displacement: 1.4L - 2.2L
Features
- ORIGINAL GT SERIES AERODYNAMICS
- 46mm TURBOCHARGER COMPRESSOR OPTION
- INTERNALLY WASTEGATED TURBINE HOUSING
- SOLD AS A COMPLETE TURBO (INCLUDES TURBINE KIT & ACTUATOR)
- BALL BEARING CONFIGURATION WITH WATER COOLED CHRA
Turbocharger Part Number Chart:
| Turbo Reference Data | Compressor | Turbine | |||||||
|---|---|---|---|---|---|---|---|---|---|
| Turbo PN | CHRA | Inducer | Exducer | Trim | A/R | Inducer | Exducer | Trim | A/R |
| 836023-5004S | 835995-0003 | 46mm | 60mm | 60 | 0.80 | 53mm | 42mm | 62 | 0.64 |
About GarrettĀ® GT Series Turbochargers
GarrettĀ® GT Series is the name that pioneered turbo technology and boosted drag racing and road racing teams to break hundreds of world records. The GT Series lineup is offered in both journal and ball bearing options, and sizes ranging from GT2052 to GT3582. The cast compressor wheels feature original GT Series aerodynamics and provide maximum durability and longevity. Internally wastegated turbine housing options are available in all GT Series sizes. Turbine kits are offered in open volute and twin scroll, and a variety of A/R and flange configurations. For any performance need, GT Series turbochargers have you covered.
