Improved Racing - 1/4" Spacer for Improved Racing Oil Filter Takeoffs & Sandwich Plates
- Use this 1/4" spacer with Improved Racing sandwich plates and takeoff adapters where extra clearance is required.
- Required for the Honda S2000 and 5th Gen Camaro SS.
- Lifetime Warranty.

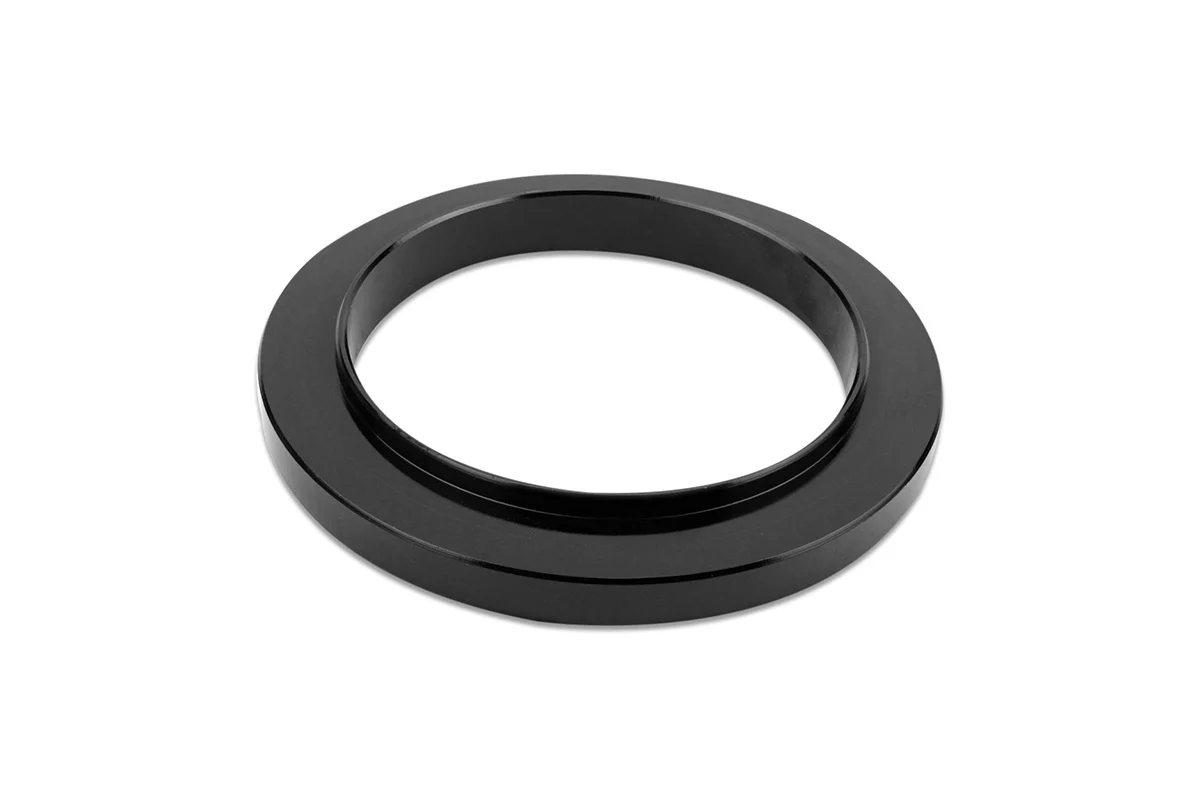

This 1/4" spacer can be used to add additional clearance to Improved Racing sandwich plates and takeoff adapters when necessary. For example, the Honda S2000 requires this spacer for adapters to seal correclty to the filter pedestal when the water-to-oil cooler has been removed. This spacer is also required to allow the ports on Improved Racing sandwich plates to clear the 5th Gen Camaro SS oil pan.
Features and Benefits
- 6061-T6 billet aluminum construction with black MIL-A-8625 Type II anodized finish.
- FKM (Viton®) gasket.
- Lifetime Warranty.

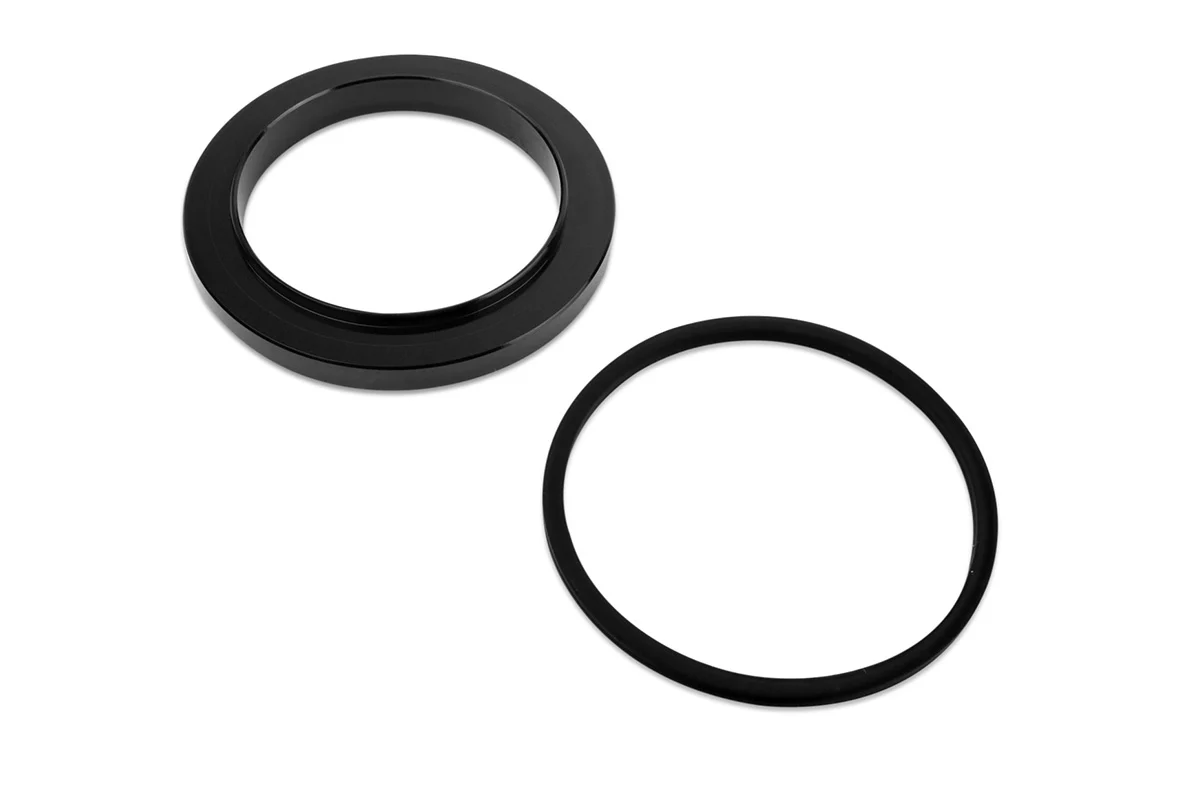

Includes
- 1x 1/4" spacer.
- 1x FKM sealing gasket.
Applications
- Compatible with all Improved Racing sandwich plates and filter takeoff adapters including part numbers:
- ENV-131
- ENV-132
- ENV-135
- ENV-139
- ENV-160
- ENV-161
- ENV-162
- ENV-163
- ENV-164
- ENV-169
- ENV-190
- ENV-191
- ENV-192
- Required when using any of the parts above with the Honda S2000 or 5th Generation (2010-2015) Camaro SS.
- To confirm compatibility with other brand sandwich plates and takeoffs, see the dimensions below.
Dimensions
| Part # |
ENV-119
|
|---|---|
| Brand |
Improved Racing
|
| Primary Material |
6061-T6 aluminum
|
| Finish |
Type II Anodized
|
| Color |
Black
|
| Minimum Operating Temperature |
-40°F (-40°C)
|
| Maximum Operating Temperature |
302°F (150°C)
|
| Maximum Operating Pressure |
300 psi (20.68 bar)
|
| Max Recommended Flow Rate |
Up to 20 GPM (76 LPM)
|
| Fluid Compatibility |
Air
Alcohol Coolants Engine oil Ethanol-based fuels (E85+) Ethanol/gasoline mixtures Gear oil Methanol Nitrous Oxide Racing fuels Transmission fluid Vacuum Water |
| Filter O-Ring Material |
Viton® (FKM)
|
