*S13 BOLT-ON TUBE FRONT AND LRS KIT – MADE TO ORDER WILL SHIP ONCE COMPLETED, END OF JULY ETA*

This tube front is designed to fit the S13. This kit works with both Kouki and Zenki headlights and front ends. The kit comes stitch-welded with steel threaded inserts for all bolted connections.

There is the option for MIG or TIG welded.

TUBE FRONTS HAVE A CUSTOM LEAD TIME – PLEASE REACH OUT FOR A LEAD TIME ESTIMATE info@cagekits.org

Features:

• This kit comes with the Tube Front as well as the LRS
• Adds an additional 1.25″ of room for a radiator

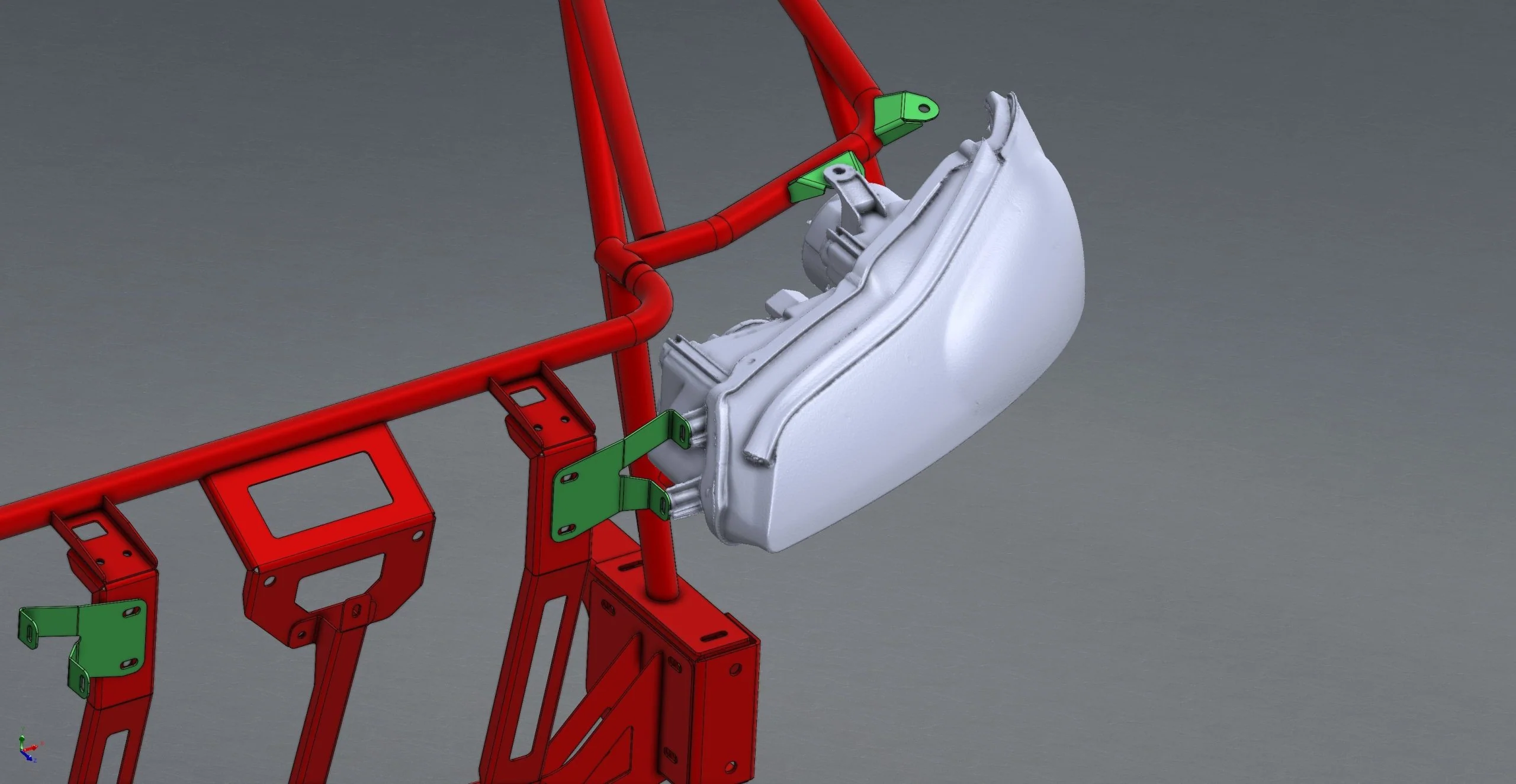

• Maintains factory popup light bracket positioning
• Maintains hood latch position
• Stitch-welded with steel threaded inserts for bolted connections
• Option for MIG or TIG welded
• Fender Tabs included



Have a front end conversion on your S13? Check out our options:

S14 Front End Conversion: S13 Chassis with S14 Nose, Fenders, Hood, and Headlights (S13.4-TF)

• Works with the S14 headlights on the S13 chassis
• Maintains factory popup light bracket positioning
• Maintains hood latch position
• Stitch-welded with steel threaded inserts for bolted connections
• Option for TIG or MIG welded

S15 Front End Conversion: S13 Chassis with S15 Nose, Fenders, Hood, and Headlights (S13.5-TF)

• Works with the S15 headlights on the S13 chassis
• Maintains factory popup light bracket positioning
• Maintains hood latch position
• Stitch-welded with steel threaded inserts for bolted connections
• Option for MIG or TIG welded



Description:

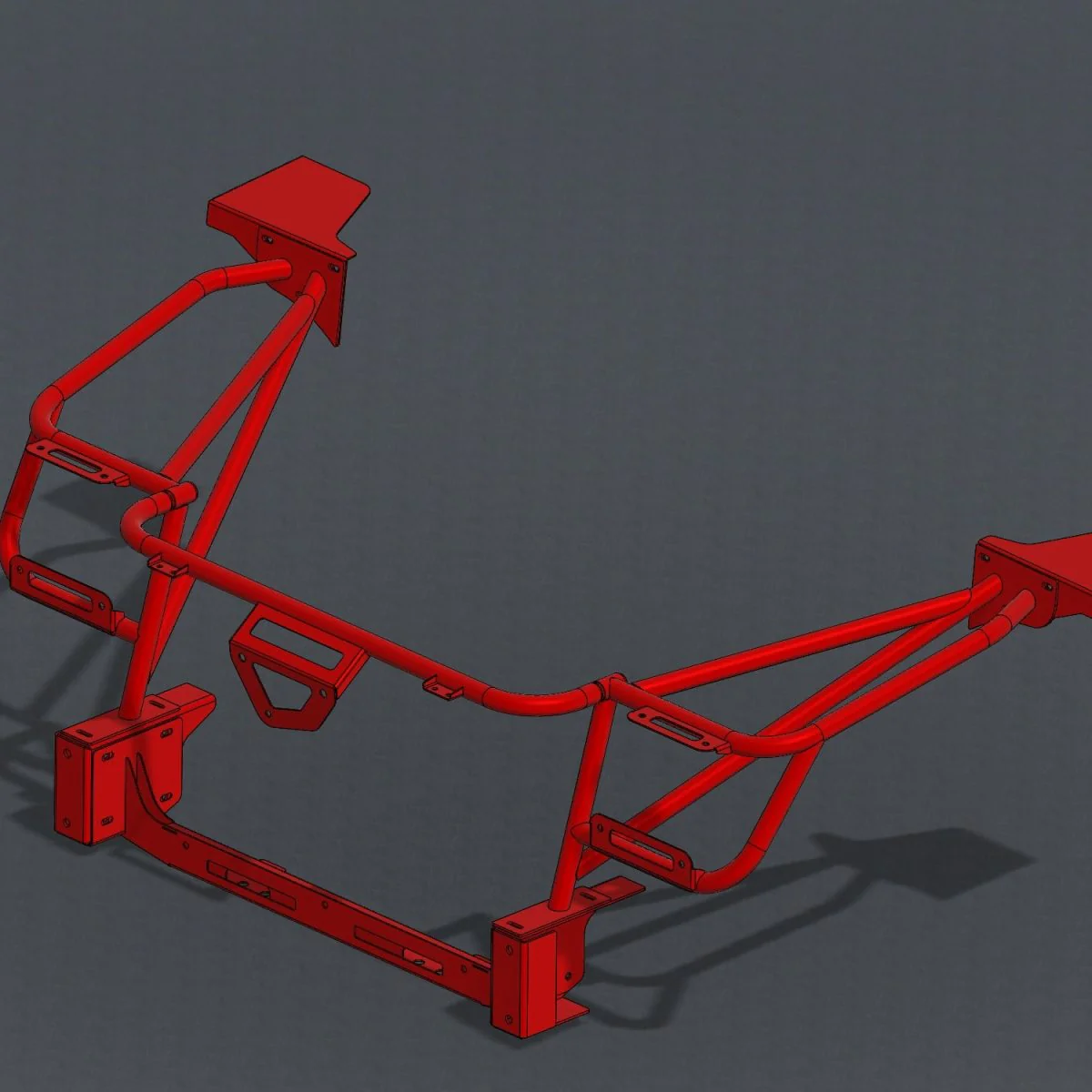

The S13 Tube Front comes fully CNC laser notched and CNC mandrel bent. It’s fully welded in a precision fixture in order to maintain accuracy. Metric fasteners are used to retain the factory hardware during your installation.

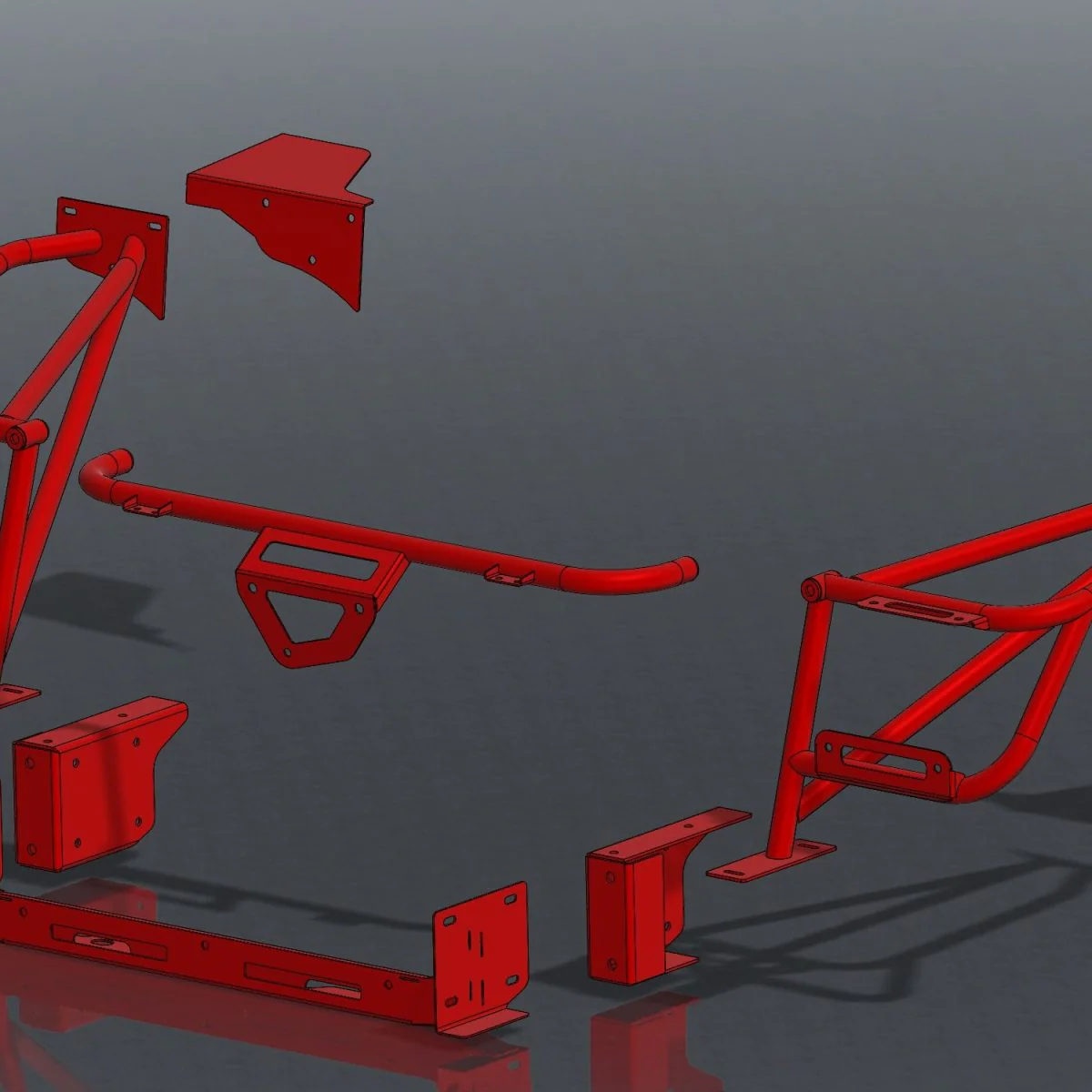

This kit is fully modular and comes apart in 4 pieces: DS Tubes, PS Tubes, Lower Rad Support, and Upper Rad Support. Tubing is 1″ x .095″ ERW and sheet metal is a mix of 14ga and 11ga O&P steel.
